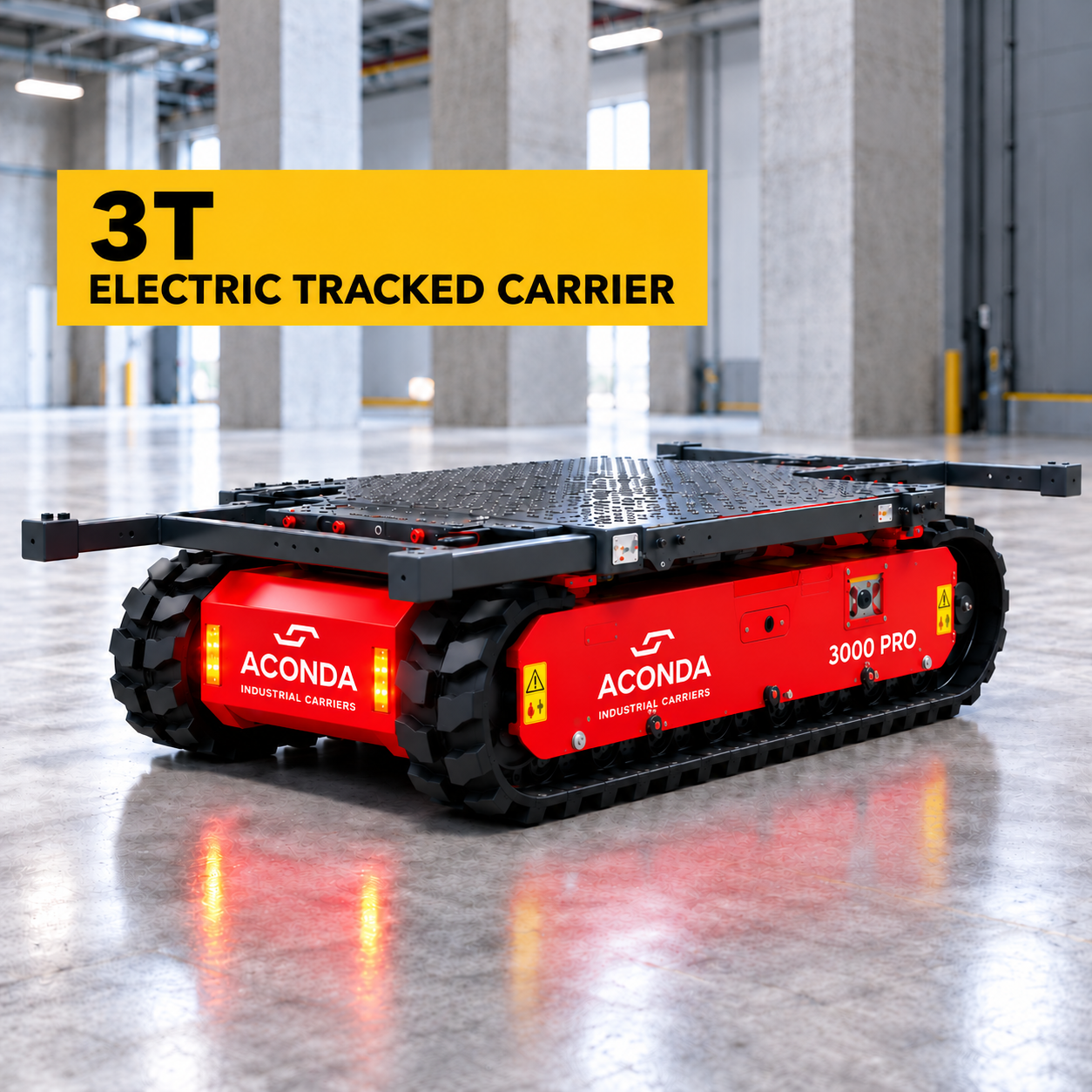

3T Tracked Carrier Hire Melbourne | ML 3.0 FX
800 mm-Wide Electric Tracked Carrier for Heavy Loads, Restricted Access & Indoor Equipment Moves
Crane2U offers 3T tracked carrier hire in Melbourne and Regional Victoria using the ML 3.0 FX, a compact battery-electric flatbed carrier for transporting heavy materials and equipment across challenging access routes. The published specification lists a maximum capacity of 3,000 kg (up to 25°), an overall width of 800 mm and radio remote control. The actual load limit must be verified against slope, load position, route conditions and the exact carrier configuration.
The ML 3.0 FX combines rubber tracks, a rotating platform with 16 lockable positions, adjustable telescopic support beams and a fully removable battery pack. It can support controlled equipment movements through industrial facilities, construction sites, glazed facades, fit-outs and restricted-access delivery routes where moving materials horizontally is the main challenge.
Explore tracked carrier hire Melbourne or compare the 2.5T Aconda 2500 PRO, 1.25T Aconda 1250 PRO and 4T Aconda 4000 PRO to select the best machine for your load and clearance.
ML 3.0 FX 3T Tracked Carrier Specifications
Specification | ML 3.0 FX reference data |
|---|---|
Maximum rated capacity | 3,000 kg (up to 25°; verify actual conditions) |
Capacity at maximum gradient | 2,500 kg (manufacturer reference) |
Maximum longitudinal gradient | 45° |
Maximum lateral gradient | 30° |
Overall width | 800 mm |
Overall length | 1,770 mm |
Overall height | 550 mm |
Track length | 1,310 mm |
Track width | 200 mm |
Ground clearance | 64 mm |
Maximum travel speed | 4.2 km/h |
Swivel platform | 360° with 16 lockable positions |
Drive | Two IP67-rated 5.3 kW AC electric motors (10.6 kW total) |
Voltage | 48 V |
Battery options | Removable AGM (ELC) or lithium (LTH) |
Charging time (110–230 V) | Approx. 7 hours AGM / 4 hours lithium |
Operating control | Radio remote control |
Weight with battery | 790 kg AGM / 720 kg lithium |
Additional features | Telescopic support beams; automatic tilt alarm with speed reduction |
Choose Your Tracked Carrier

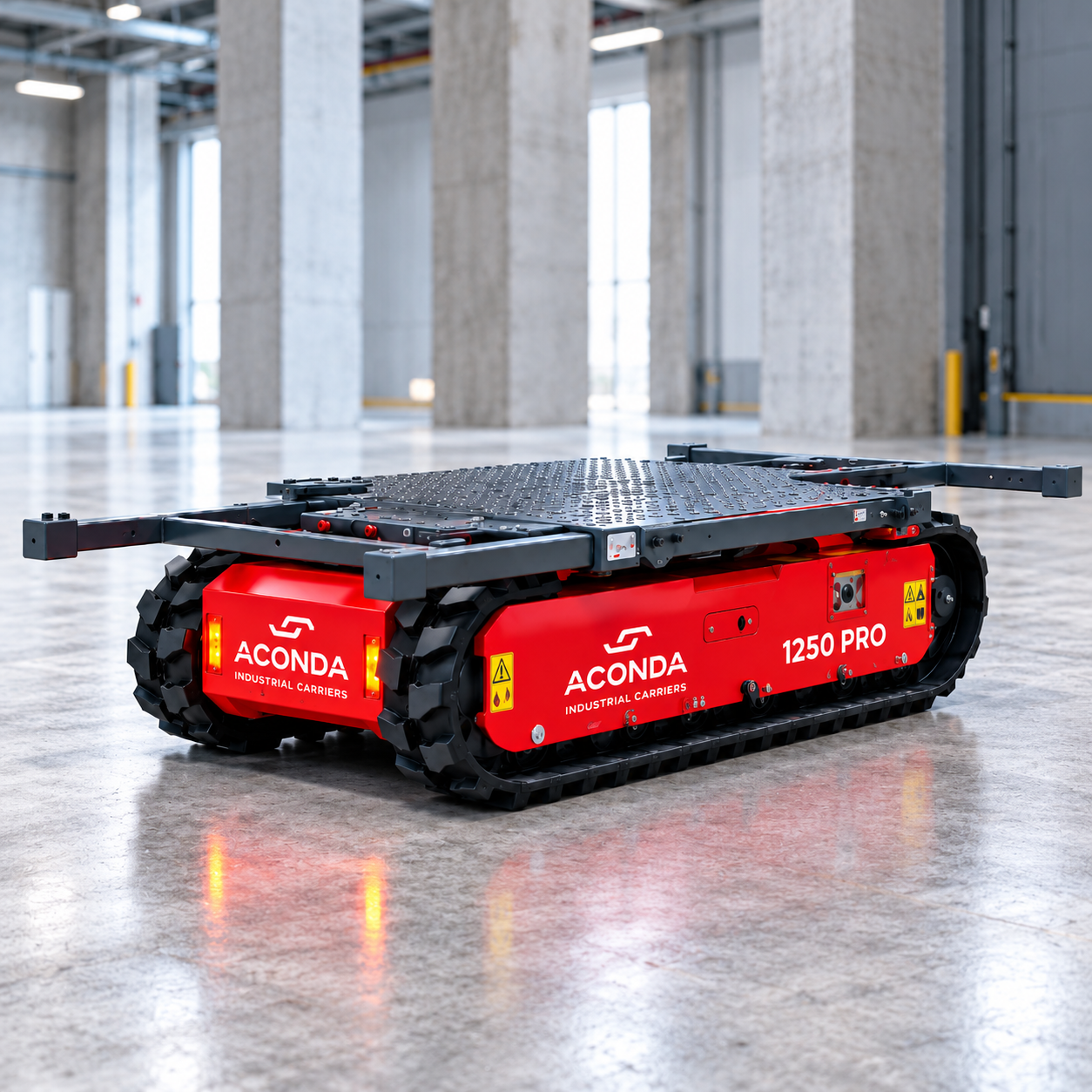

1.25T Tracked Carrier

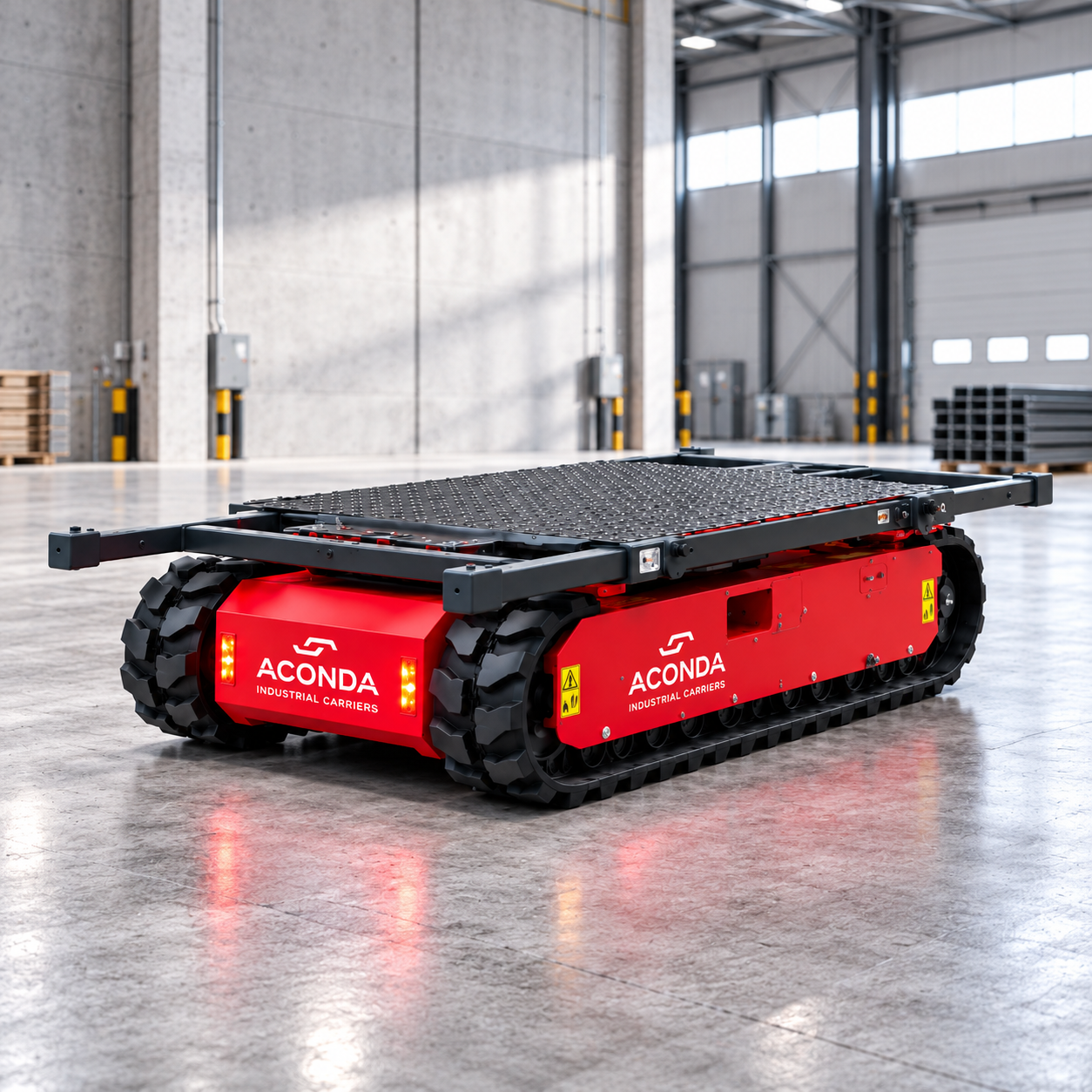

2.5T Tracked Carrier

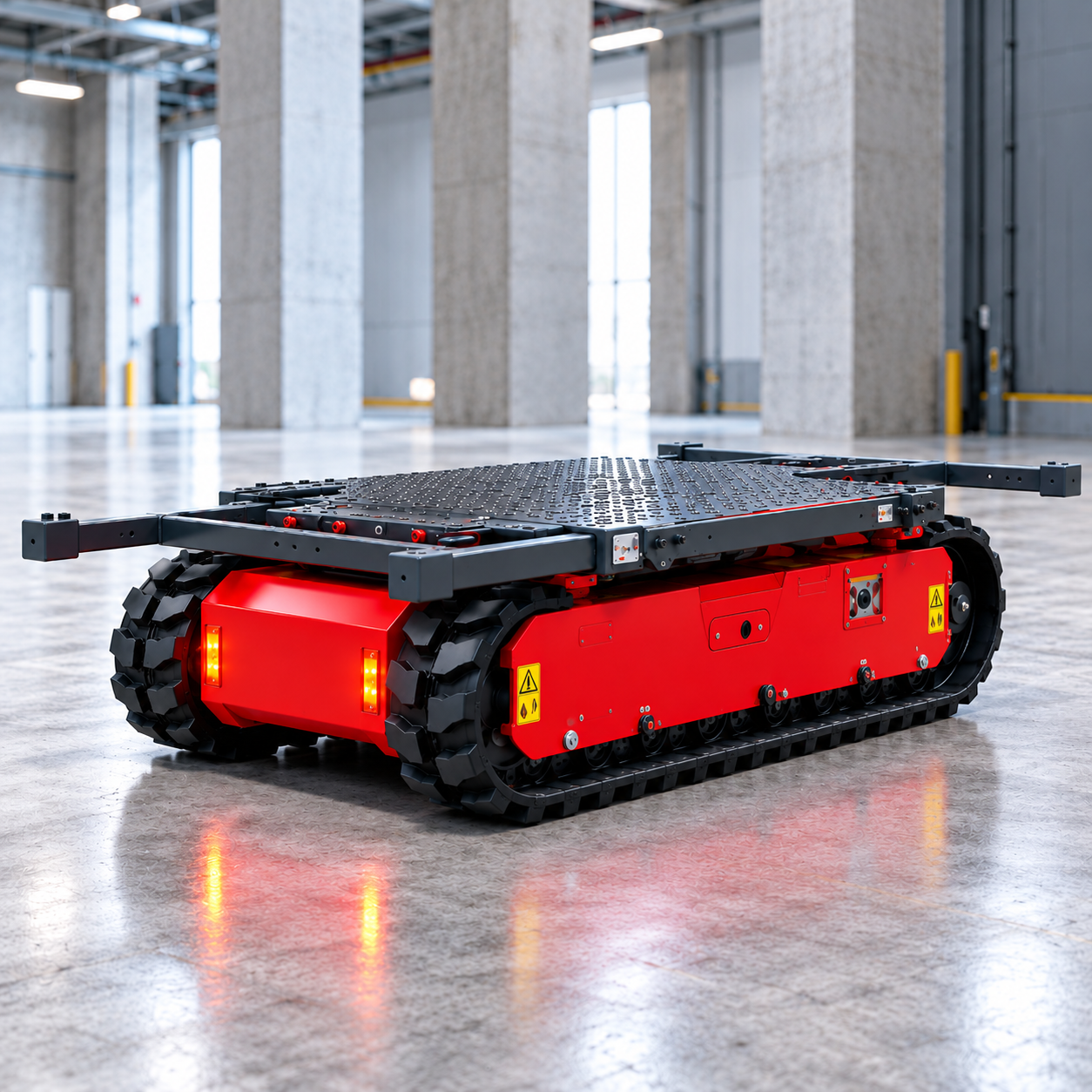

3T Tracked Carrier

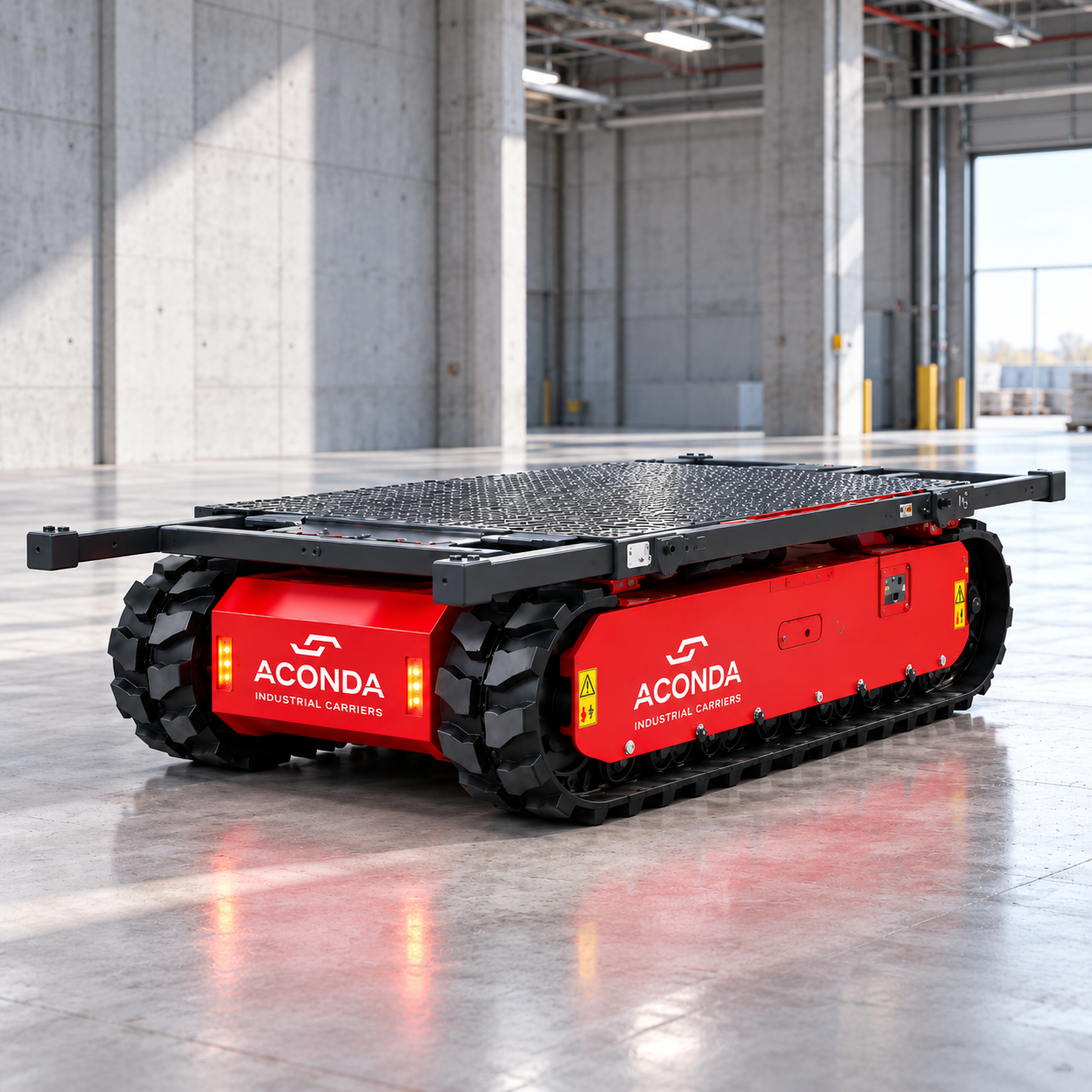

4T Tracked Carrier
Why Choose the ML 3.0 FX 3T Track Carrier?
- 3,000 kg manufacturer-rated load capacity for transporting substantial material and plant, subject to gradient and configuration.
- 800 mm listed overall width, allowing routes that may be too narrow for some larger carriers once load overhang and clearances are checked.
- Quiet battery-electric travel with a fully removable battery pack for site handling and longer work packages.
- 360° rotating platform with 16 locking positions and telescopic support beams for suitable long or awkward loads.
- Radio remote control, adaptive tracked rollers and tilt monitoring for controlled movement on suitable routes
Common 3T Tracked Carrier Applications
Moving heavy construction materials, prefabricated components and steel assemblies.
Transporting glazing, facade systems, stone and architectural elements to installation zones.
Industrial plant, pumps, motors and machinery relocation inside factories and warehouses.
Moving electrical switchboards and building services equipment through restricted corridors.
Supporting indoor fit-outs, commercial refurbishments and access-sensitive site logistics.
Material transport for restricted-access lifting projects in coordination with a spider crane.
3T Tracked Carrier Hire Across Melbourne & Regional Victoria
Crane2U can assess 3T tracked carrier hire for appropriate projects in Melbourne, Melton, Bacchus Marsh, Maddingley, Werribee, Caroline Springs, Maidstone, Sunshine, Altona, Truganina, Geelong, Ballarat, Gisborne and surrounding Victorian areas. Availability and mobilisation depend on project requirements and location.
To check the route, ground and load requirements, contact Crane2U for a 4T tracked carrier quote.
View all Crane2U crane hire service areas or send the project address to confirm mobilisation and availability.
What We Need to Check Before Booking the 3T Carrier
- Accurate load weight, dimensions and centre-of-gravity information.
- Route width, height, corners, thresholds, ramps and tight turning points.
- Maximum longitudinal and side gradients, route length and surface condition.
- Floor or ground bearing limits for internal or sensitive locations.
- Battery/track requirements and whether the rotating platform or extended supports are needed.
- Site address, preferred dates and clear photos of the transport path.
Ready to check machine suitability? Contact Crane2U for a 3T tracked carrier quote with your load and access measurements.
Need a Reliable Crane for Your Next Project?
Tell us what you are lifting, where it needs to go and what access is available. Crane2U can recommend a suitable crane and supporting services for the job.
How the 3T Carrier Compares with Other Models
The 1.25T tracked carrier is the smallest option at 750 mm overall width. The 2.5T carrier has a 950 mm listed width and up to 2,500 kg capacity on level ground. The ML 3.0 FX lists 800 mm width and 3,000 kg maximum capacity subject to the manufacturer’s gradient limits, making width and carrying capacity an important combination to evaluate rather than selecting by tonne rating alone.
For larger level-ground loads, compare the 4T tracked carrier. If the job also needs a vertical lift after materials have been transported, consider crawler spider crane hire or wider mobile crane hire in Melbourne. The correct equipment depends on the route, load geometry, surface and lifting plan.
Crane Hire & Restricted-Access Support
Restricted-access lifts often need more than a crane. Crane2U can coordinate supporting services around the actual site conditions and lifting plan.
Wet & Dry Crane Hire
Flexible crane hire options matched to the project, crew requirements and operating arrangements.
Engineered Lift Planning
Planning support for complex or higher-risk lifts, including lift methodology and site considerations.
Dogman & Riggers
Qualified lifting support for rigging, load control, signalling and safe crane operations.
Electrical Spotters
Qualified spotter support for crane and plant operations near electrical hazards and powerlines.
Transport Services
Transport support for machinery, equipment and project materials across Melbourne and Regional Victoria.
Tracked Carrier Hire
Tracked material-handling support where loads need to move through soft, rough or restricted-access areas.
What can the ML 3.0 FX carry?
The manufacturer reference lists a maximum capacity of 3,000 kg (up to 25°) and 2,500 kg at its maximum gradient. These are not guarantees for every load or site; a route and load assessment is required.
Is the 3T tracked carrier only 800 mm wide?
The reference matching the supplied preview lists 800 mm overall width. Your usable passage must also account for load overhang, turns, door frames, safety clearances and the exact fleet version.
Can the ML 3.0 FX be used indoors?
Battery-electric drive can suit indoor work, subject to floor loading, surface protection, pedestrian separation and site-specific safety controls.
Does a tracked carrier lift loads vertically?
No. The carrier is intended to transport loads horizontally. For placement at height, arrange suitable lifting equipment such as a crawler spider crane.
What is the difference between the 2.5T and 3T carriers?
The 2.5T Aconda 2500 PRO is listed at 950 mm wide with 2,500 kg level-ground capacity; the ML 3.0 FX reference lists 800 mm width and up to 3,000 kg under stated conditions. The correct choice depends on your route, support arrangement and load.
Can I hire a 3T tracked carrier in Geelong or Ballarat?
Crane2U can assess suitable projects across Melbourne and Regional Victoria, including Geelong and Ballarat. Provide project details so mobilisation and equipment suitability can be confirmed.
Which battery configuration is provided?
Manufacturer literature describes removable AGM and lithium options. Confirm the battery fitted to the specific Crane2U unit and the site charging arrangement before hire.
