60T All Terrain Crane Hire Melbourne

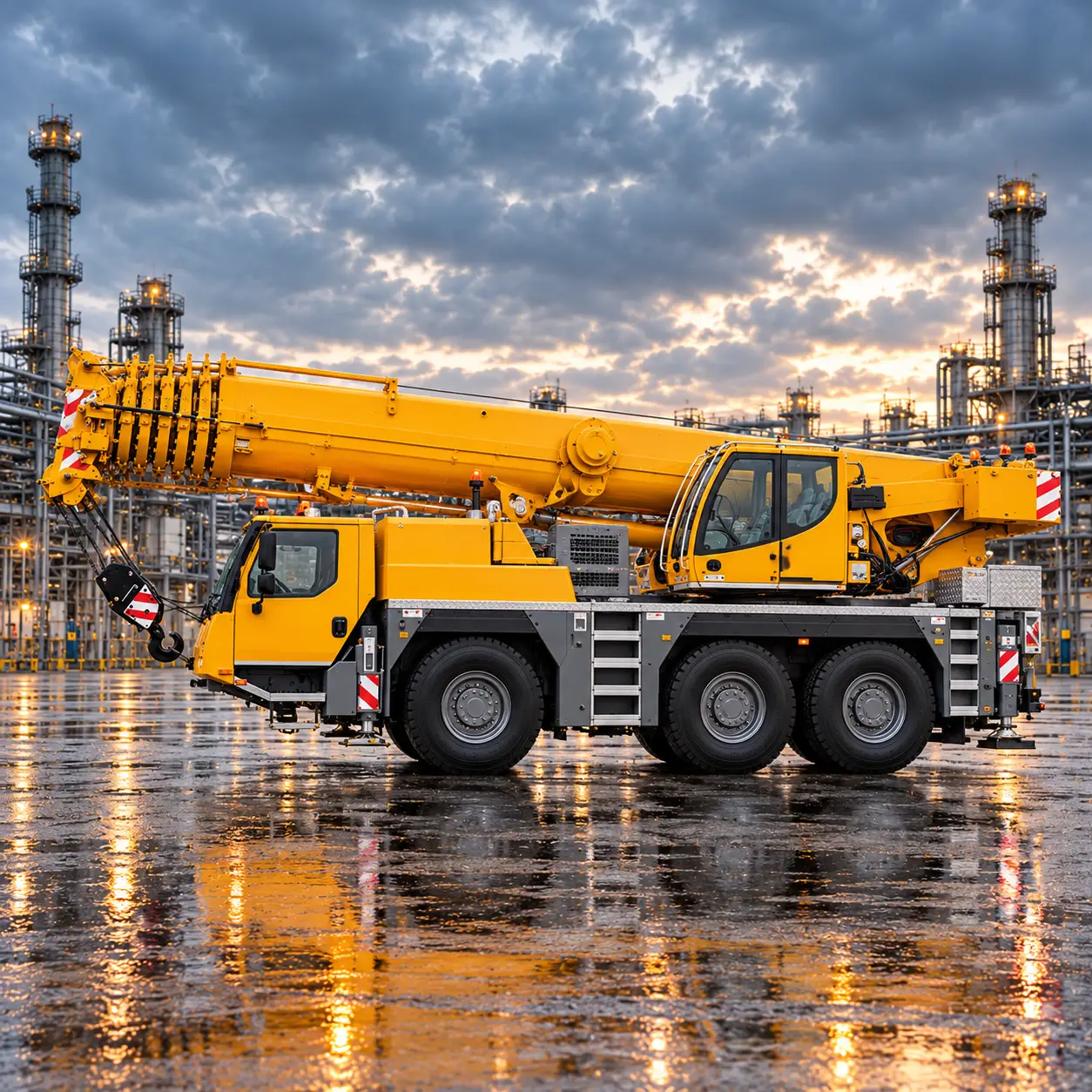

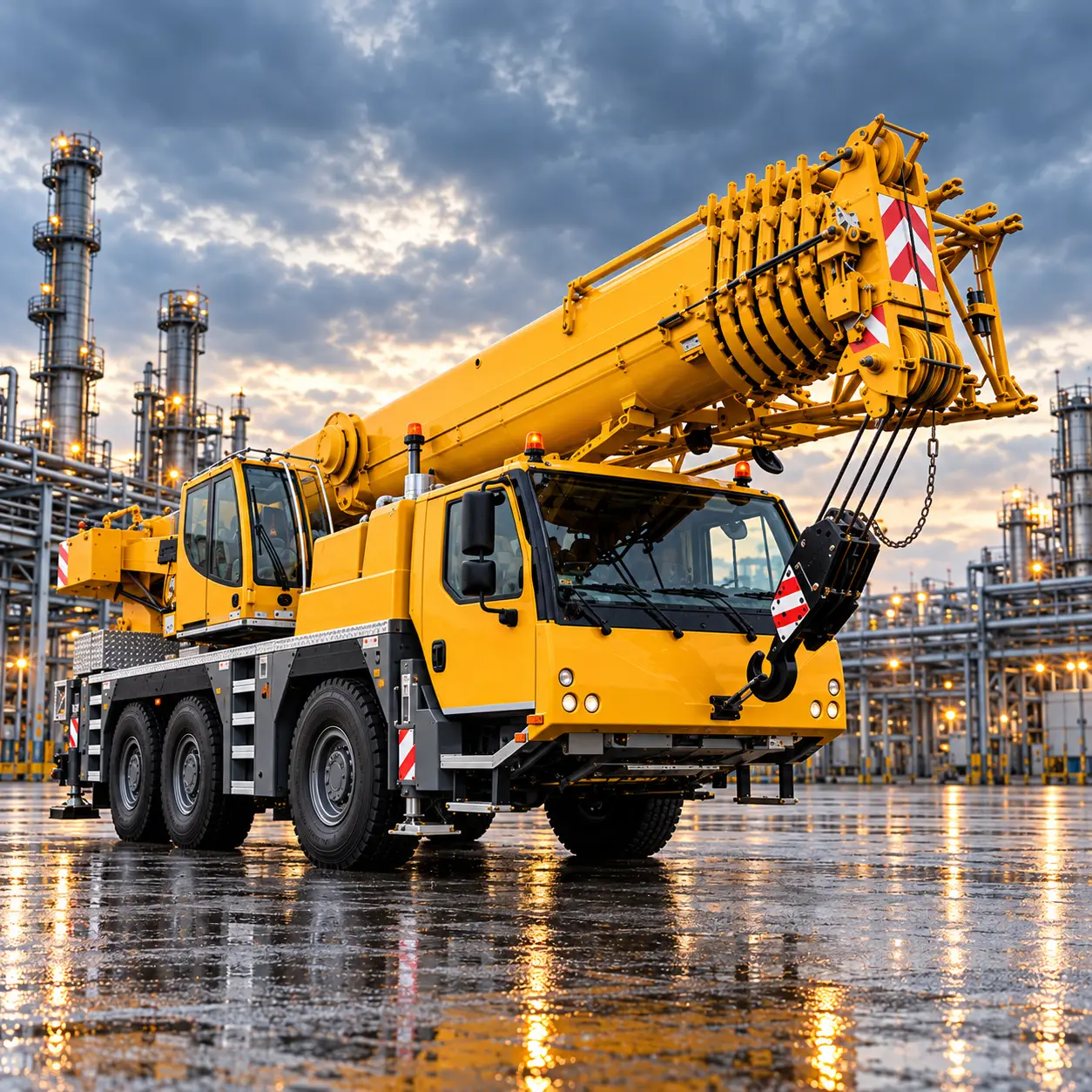

Liebherr LTM 1060-3.1 | 48 m Boom for Heavy Plant, Steel & Long-Reach Lifting
Crane2U provides 60T all terrain crane hire across Melbourne and Regional Victoria using the Liebherr LTM 1060-3.1. It is the largest crane in the three-axle group and is suited to heavier structural, machinery, rooftop plant, civil and industrial lifts where additional boom length and chart capacity are required.
Liebherr rates the LTM 1060-3.1 at 60 tonnes maximum capacity. Its telescopic boom extends to 48 m, with a maximum hoist height of 63 m and maximum radius of 48 m in applicable configurations. These headline values are not simultaneous lifting capacities; the actual allowable load must be checked from the load chart at the planned working radius.
Liebherr LTM 1050-3.1 Specifications
Specification | Verified manufacturer data |
|---|---|
Maximum load capacity | 60 t |
Rated capacity reference | 60 t at 2.1 m radius |
Telescopic boom | 10.3 m to 48.0 m |
Lattice / folding jib | 2.5 m to 16.0 m |
Maximum hoist height | 63 m |
Maximum radius | 48.0 m |
Number of axles | 3 |
Drive / steering | 6 x 4 x 6 standard; 6 x 6 x 6 option |
Driving speed | up to 85 km/h |
Total ballast | 12.8 t |
Important: maximum rated capacity is only available in specific configurations and at short radius. Actual lifting capacity depends on working radius, boom configuration, counterweight, outrigger setup and the manufacturer load chart.
Need a Reliable Crane for Your Next Project?
Tell us what you are lifting, where it needs to go and what access is available. Crane2U can recommend a suitable crane and supporting services for the job.
Structural Steel & Roof Frames
Lift beams, columns, roof trusses and fabricated steel components for warehouses, commercial buildings and industrial projects.
Rooftop Plant & HVAC
Place chillers, air-conditioning units, lift motors and service equipment where reach over buildings or obstructions is required.
Plant & Machinery Installation
Position production machinery, tanks, pumps and process equipment in factories, workshops and industrial facilities.
Precast & Construction Materials
Support panel, column and construction-material lifts where the verified load chart and site setup are suitable.
Civil & Infrastructure Support
Handle pits, barriers, drainage structures and project components for road, utility and civil works.
Transformer & Switchboard Lifting
Support equipment placement for electrical and utility projects where appropriate lift planning and site controls are in place.
Crane Hire & Site Support in One Place
Crane2U can coordinate the crane with project support based on the lift scope. Relevant services include wet or dry crane hire where applicable, engineered lift planning, dogmen and riggers, electrical spotters, transport support and site-specific lifting assistance.
Wet & Dry Crane Hire
Flexible crane hire options matched to the project, crew requirements and operating arrangements.
Engineered Lift Planning
Planning support for complex or higher-risk lifts, including lift methodology and site considerations.
Dogman & Riggers
Qualified lifting support for rigging, load control, signalling and safe crane operations.
Electrical Spotters
Qualified spotter support for crane and plant operations near electrical hazards and powerlines.
Transport Services
Transport support for machinery, equipment and project materials across Melbourne and Regional Victoria.
Welding & Fabrication
On-site welding and fabrication support for steel work, modifications, repairs and project requirements.
When to Consider a 60T All Terrain Crane
Best Uses for the 60T LTM 1060-3.1
When to Choose the 60T Crane
60T Crane Hire Across Melbourne & Regional Victoria
Crane2U can assess 60T all terrain crane hire across Melbourne and Regional Victoria, including Melton, Bacchus Marsh, Maddingley, Werribee, Caroline Springs, Maidstone, Gisborne, Geelong, Ballarat and surrounding Western Victoria. Send the site address for a mobilisation and access review.
View all service areas or send the site address for a mobilisation assessment.
Need a pick-and-carry option?: Franna Crane Hire Melbourne
Need more capacity?: All Terrain Crane Hire Melbourne
What We Need to Check Before Booking
- Verified load weight, dimensions, centre of gravity and lifting points.
- Crane position, pick point, set point and approximate working radius.
- Required hook height, boom path and overhead obstructions.
- Access width, turning space, outrigger setup area and ground/slab conditions.
- Rigging, dogman, electrical spotter, traffic management and lift-planning requirements.
Available Support:
- Experienced crane operator for wet hire where applicable
- Dogman and rigging support available as required
- Electrical spotters available for relevant electrical hazards
- Engineered lift planning available for complex lifts
- Transport and site support can be coordinated with the booking
We proudly support the construction, civil, commercial, residential and industrial construction sectors, along with infrastructure, mining, manufacturing, logistics and warehousing clients throughout Victoria. If your load is not listed here, give us a ring; chances are we have lifted one just like it.
Call us now at 0457 000 637.
How much can the LTM 1060-3.1 lift?
Liebherr rates the LTM 1060-3.1 at a maximum load capacity of 60 t. That maximum applies only in specified configurations and at short radius. Capacity at the actual project radius must be confirmed from the load chart.
What is the boom length of the LTM 1060-3.1?
The telescopic boom range is 10.3 m to 48.0 m. The published maximum hoist height is 63 m and maximum radius is 48.0 m in applicable configurations.
What projects suit a 60T all terrain crane?
Typical work includes structural steel, rooftop plant, machinery installation, construction materials and commercial or industrial project lifting where the verified load chart suits the load and radius.
Can Crane2U help select the right crane?
Yes. Send the load details, site address, approximate radius, required height and photos or drawings. Crane2U can compare the lift against the available crane data and recommend a suitable machine.
Do you service outside Melbourne?
Yes. Crane2U services Melbourne and Regional Victoria, with regular coverage across Melbourne’s west and regional centres. Mobilisation depends on the project location and scope.
Should I choose a 50T or 55T crane?
*Choose based on the load chart at the actual radius, not on tonne rating alone. If the 50T class is close to its chart limit or needs more boom/configuration margin, Crane2U may recommend the 55T or 60T option.
