Spider Crane Hire Melbourne | Maeda Mini Crawler Cranes
2.8T, 3T & 4T-Class Maeda Spider Cranes for Restricted-Access Lifting
Crane2U provides spider crane hire in Melbourne and Regional Victoria for lifts where access, setup space or working radius makes a conventional mobile crane impractical. Our Maeda mini crawler range includes the MC285C-3 2.8T spider crane, MC305C-2 3T spider crane and MC405C-3 4T-class spider crane. These compact tracked cranes suit glazing, indoor plant, machinery, HVAC equipment, steel, switchboards, residential work and other restricted-access lifting where precise positioning matters.
Crane selection should be based on the verified load, working radius, hook height, access dimensions, floor or ground capacity and available outrigger setup area. A tonne-class label is only a starting point; the applicable Maeda load chart determines what the crane can lift in the actual configuration.
Compare the 2.8T, 3T & 4T Crawler Cranes
The correct mini crawler is selected from the actual load, working radius, hook height, access route, setup area and floor or ground conditions. Nominal tonne rating alone does not determine suitability. Compare the range below, then confirm the lift against the current crane specifications and load chart.

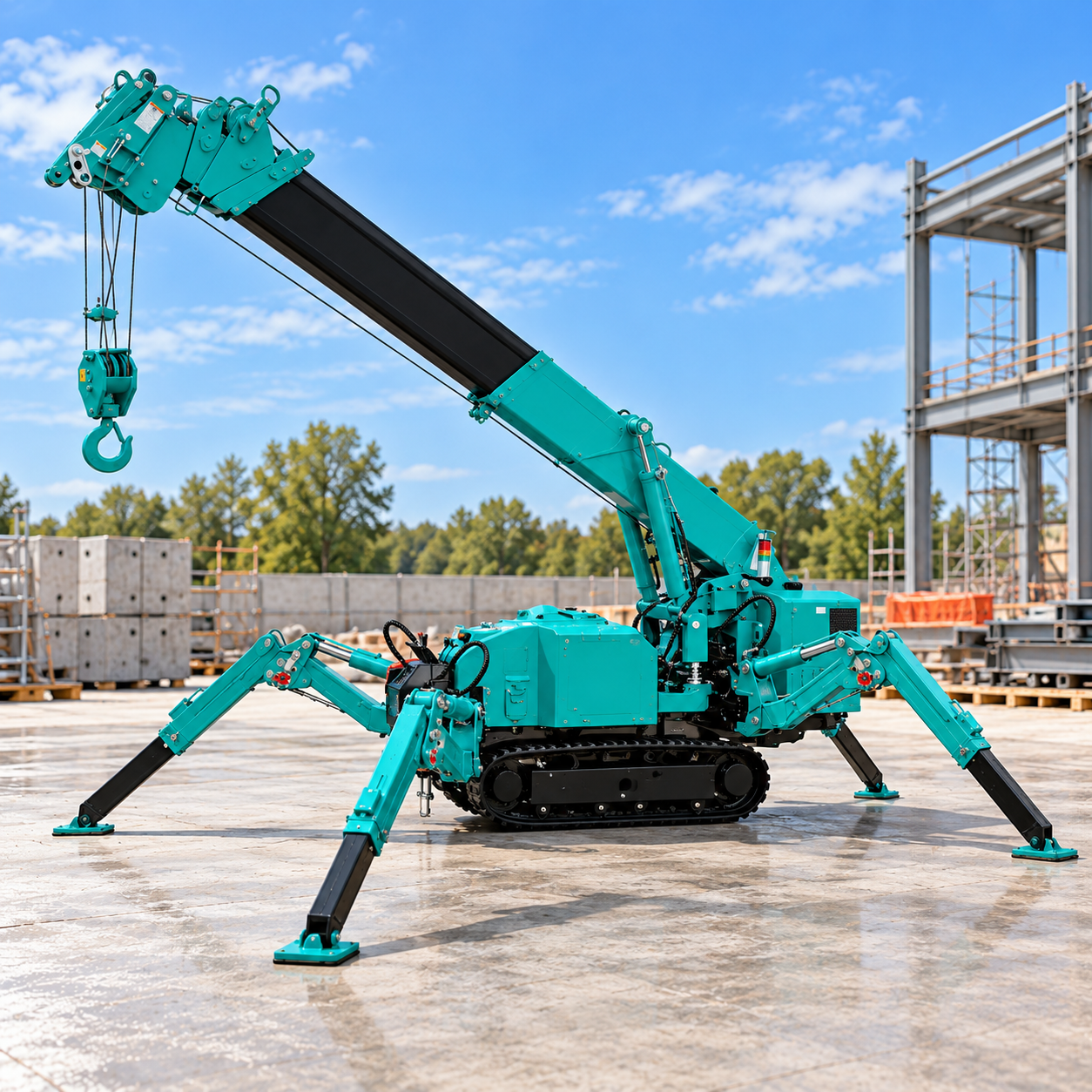

2.8T Crawler Spider Crane

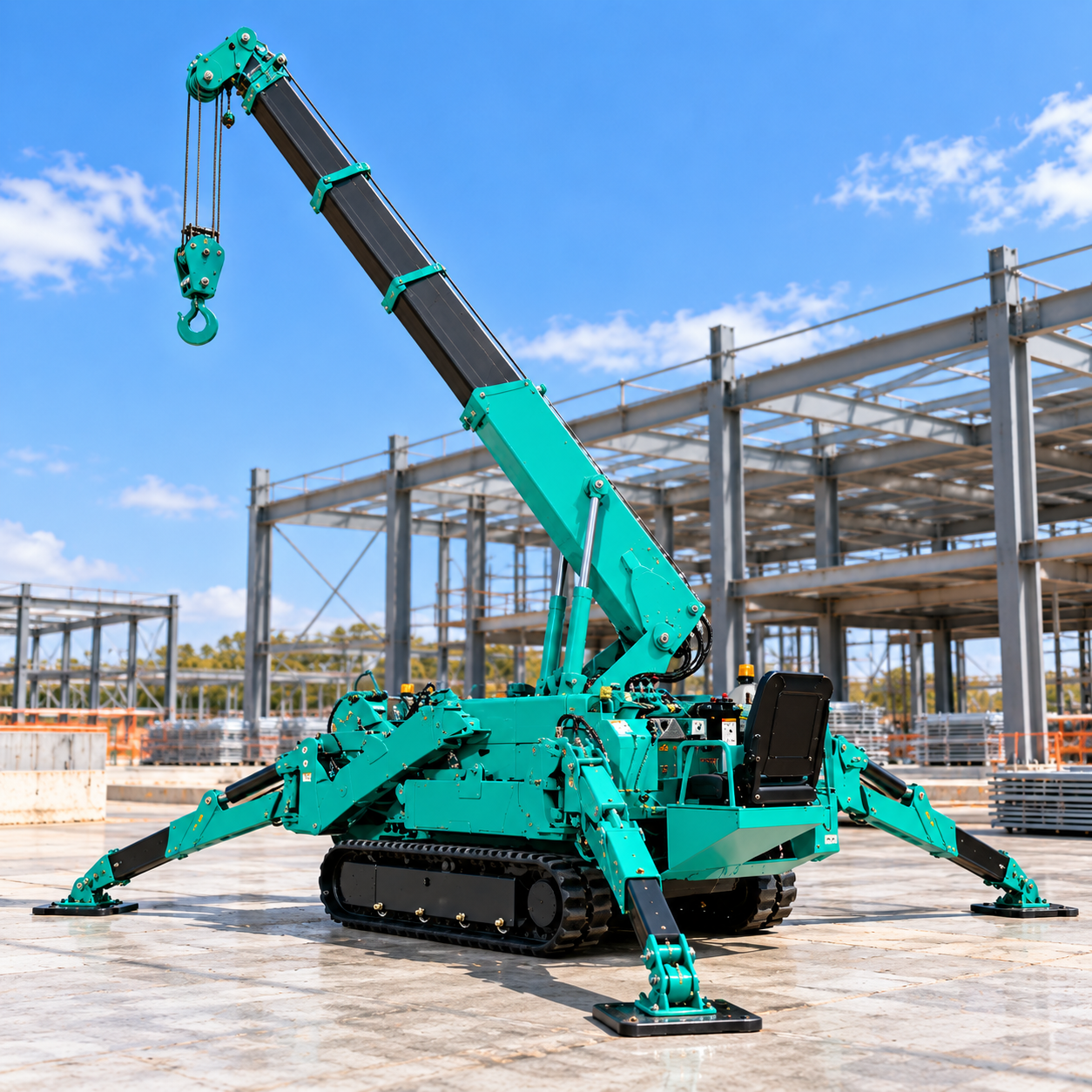

3T Crawler Spider Crane

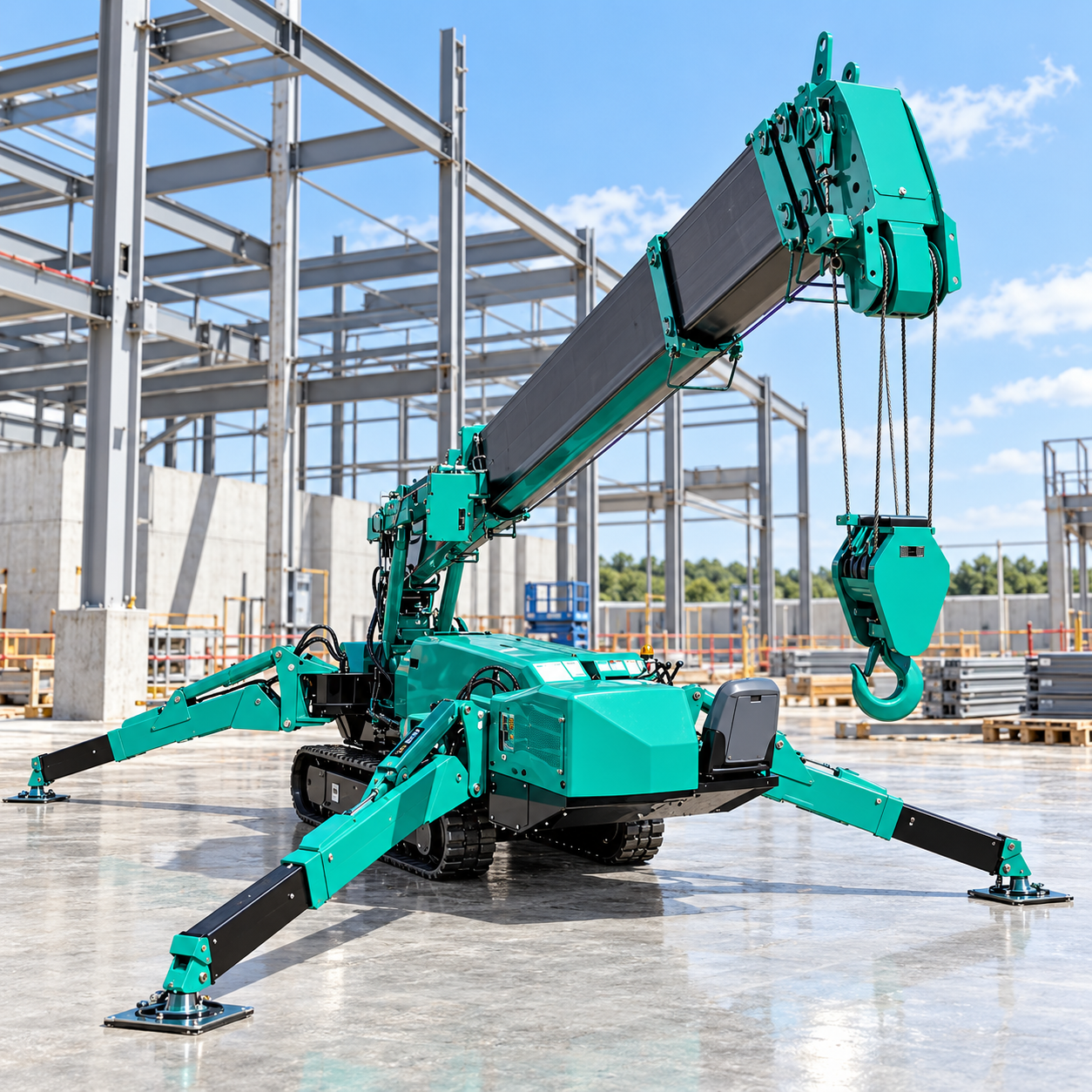

4T Crawler Spider Crane
Compare the MC285C-3, MC305C-2 & MC405C-3
Model | Class | Max rated capacity | Max working radius | Max lift height | Stowed width |
|---|---|---|---|---|---|
Maeda MC285C-3 | 2.8T | 2.82 t × 1.4 m | 8.205 m × 0.15 t | 8.7 m | 750 mm |
Maeda MC305C-2 | 3T | 2.98 t × 2.5 m | 12.16 m × 0.26 t | 12.52 m | 1,280 mm |
Maeda MC405C-3 | 4T class | 3.83 t × 2.7 m | 16.0 m × 0.21 t | 16.8 m / 20.7 m with fly jib | 1,380 mm |
*Maximum capacities are manufacturer headline ratings at the stated short radius. They are not the capacity available at every radius. Confirm the exact Crane2U machine configuration and current load chart before quoting or publishing any lift-specific capacity.
Why Spider Cranes Work on Restricted-Access Sites
A spider crane combines crawler tracks, a compact travel envelope and four stabilising outriggers. That lets the machine travel through access routes a road-going crane cannot use, then set up close to the load where a shorter working radius may improve practical lifting capacity. The real advantage is not simply “small crane = small lift”; it is the ability to put the crane in a better lifting position.
- Narrow-access positioning for courtyards, basements, internal plant rooms, workshops and constrained construction sites.
- Crawler travel for moving through controlled access routes, subject to floor/ground capacity and surface protection.
- Flexible outrigger setup within the manufacturer-approved configuration and available site footprint.
- Precise load placement for glazing, machinery, switchboards and building-services work.
- Potential indoor use where ventilation, power source, floor loading, headroom and non-marking/surface protection requirements are addressed.
For open sites where access is straightforward, a different crane class may be more efficient. Compare all-terrain crane hire, compact crane hire and the wider Crane2U mobile crane fleet before final selection.
Crane Hire & Restricted-Access Support
Crawler-spider lifts often need more than the crane itself. Depending on the project, Crane2U can coordinate the following:
Wet & Dry Crane Hire
Flexible crane hire options matched to the project, crew requirements and operating arrangements.
Engineered Lift Planning
Planning support for complex or higher-risk lifts, including lift methodology and site considerations.
Dogman & Riggers
Qualified lifting support for rigging, load control, signalling and safe crane operations.
Electrical Spotters
Qualified spotter support for crane and plant operations near electrical hazards and powerlines.
Transport Services
Transport support for machinery, equipment and project materials across Melbourne and Regional Victoria.
Welding & Fabrication
On-site welding and fabrication support for steel work, modifications, repairs and project requirements.
Tracked Carrier Hire
Tracked material-handling support where loads need to move through soft, rough or restricted-access areas.
How Spider Crane Hire Works
How the Crawler Crane Hire Process Works
HOW HIRE WORKS
Spider Crane Hire Across Melbourne & Regional Victoria
Crane2U can assess mini crawler and spider crane hire throughout Greater Melbourne and Regional Victoria, including Melton, Bacchus Marsh, Maddingley, Werribee, Caroline Springs, Maidstone, Sunshine, Footscray, Altona, Truganina, Point Cook, Gisborne, Geelong, Ballarat, Ballan and surrounding Western Victoria locations. Other Victorian projects can be assessed from the site address, access details and mobilisation requirements.
View all service areas for wider coverage.
Need a pick-and-carry option?: Franna Crane Hire Melbourne
Need more capacity?: All Terrain Crane Hire Melbourne
Why Use a Crawler Spider Crane?
- Restricted-access positioning — Compact crawler cranes can be considered where the crane must pass through narrow access routes or operate within a limited setup area.
- Tracked travel — Tracks can help the machine travel across surfaces and ground conditions that may not suit a conventional road-going crane, subject to site assessment and protection requirements.
- Flexible setup — Spider-style outriggers can suit constrained spaces where the available setup area is irregular, provided the approved configuration and ground conditions are suitable.
- Closer placement to the load — Getting the crane nearer to the lift can reduce working radius, which is often more important than nominal crane capacity.
- Indoor and sensitive-site work — Some mini crawler configurations can suit indoor or occupied-building projects. Power, ventilation, floor loading, headroom and access still need to be confirmed for the actual unit.
Need a Reliable Crane for Your Next Project?
Tell us what you are lifting, where it needs to go and what access is available. Crane2U can recommend a suitable crane and supporting services for the job.
Where Crawler Spider Cranes Are Used
Glass & Facade Installation
Windows, glazing panels, shopfront glass, balustrades and facade elements where precise placement and restricted access are part of the job.
Indoor Plant & Machinery
Pumps, generators, chillers, tanks, production equipment and other plant moved through existing openings into basements, workshops and plant rooms.
HVAC & Rooftop Equipment
Air-conditioning units, chillers, fans, water tanks and mechanical services placed on roof decks, balconies and constrained plant areas.
Transformers & Switchboards
Electrical plant and switchgear installed where access, floor conditions and supporting personnel need to be planned carefully.
Residential & Landscaping
Spas, small pool shells, trees, boulders, sheds and building materials lifted where side access, yards or finished surfaces restrict larger cranes.
Steel & Construction Components
Beams, lintels, frames, mezzanine components and other suitable construction materials placed on restricted or internal sites.
What is a crawler spider crane used for?
Crawler spider cranes are used where a compact tracked crane needs to reach a constrained setup area. Common work includes glass and facade installation, indoor plant, HVAC equipment, steel components, landscaping, rooftop equipment and restricted-access construction lifting.
What is the difference between a spider crane and a mini crawler crane?
In hire-market language the terms are often used for the same compact tracked crane type. “Spider crane” refers to the four outrigger legs used for stability; “mini crawler” describes the crawler-track travel system.
Which Maeda spider cranes does Crane2U list?
The Crane2U crawler range is structured around the 2.82T Maeda MC285C-3, 2.98T Maeda MC305C-2 and 3.83T Maeda MC405C-3. The correct machine depends on the load chart, access route, radius, height and setup area.
Can a spider crane work indoors?
Potentially. Indoor use depends on access width and height, floor loading, ventilation, power source, surface protection and the crane configuration. Send building measurements and photos before booking.
Can a spider crane lift glass?
Yes, spider cranes are commonly used with suitable vacuum lifting equipment for glazing and facade work. The crane and vacuum lifter both need to be matched to the panel weight, dimensions, placement position and working radius.
Do you provide crawler spider crane hire across Melbourne?
Yes. Crane2U services Melbourne and Western Victoria, including Maidstone, Werribee, Caroline Springs, Melton, Bacchus Marsh, Geelong, Ballarat, Gisborne and surrounding areas.
What information do I need for a spider crane quote?
Provide the site address, load weight and dimensions, pick and landing points, required height, approximate radius, narrowest access dimensions, floor or ground information, preferred date and clear site photos or drawings.
